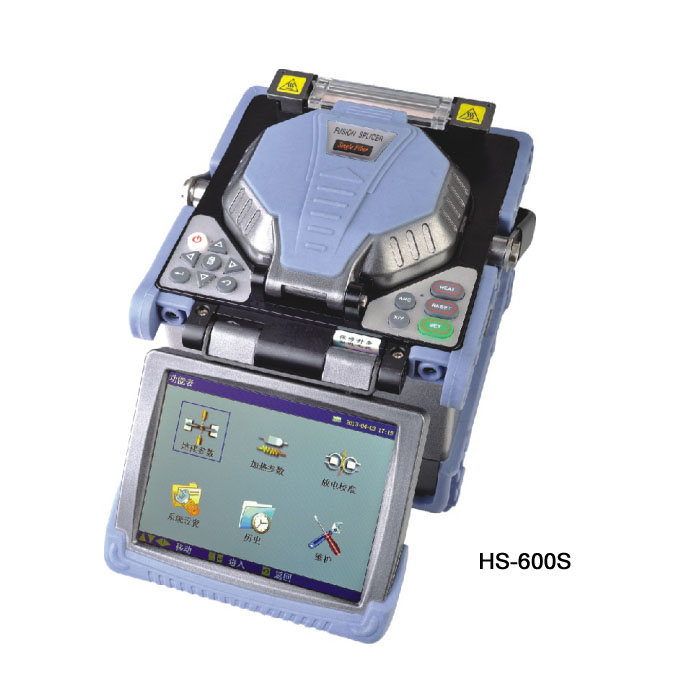

HS-600S Fusion Splicer

Digital fusion splicer with automatic focus function

Fiber core can be display clearly
Single X or Y view and X & Y view simultaneously
Features
Digital fusion splicer with automatic focus function
Fiber core can be display clearly
Single X or Y view and X & Y view simultaneously
Auto detect cleaved endface fault
Display fiber cleaved and offset angle
Display core and clad offset
5.1 inch TFT color LCD monitor with clear digital image display
USB & VGA interface
Software upgrade via USB interface

Model	HS-600S
Applicable fibers	SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655)
Fiber cleaved length	10～16mm(Coating diameter＜250μm );16mm(Coating diameter250～1000μm
Fiber diameter	Cladding diameter:80～150μm , Coating diameter:100～1000μm
Auto focusing	Available
Fiber aligning method	Core aligning,clad aligning,manual aligning
Average splice loss	0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
Splicing time	Typical 9 sec,with standard SM fiber
Heating time	Typical 36 sec
Applicable sleeves	60mm,40mm and a series of micro sleeves
Tension test	2N(option)
Electrode life	5000
Battey capacity	Typical 400 cycles(splice and heat)
Monitor	5.1 inch TFT color monitor
Terminal	USB 1.1and VGA, software upgrade via USB interface
Operating condition	0～5000m above sea level,0～95%RH and-10～50℃C,respectively,Max.wind velocity of 15m/s
Splicing mode	Auto,normal
Fiber cleaved angle threshold set	0.1～1 t 0.0℃，0.1℃step
Power supply	Li-battery 11.8V ,AC100-240V DC12.6V/5.0A
Dimension	L169*W152*H155mm
Weight	2.4kg 2.9kg(battery)
